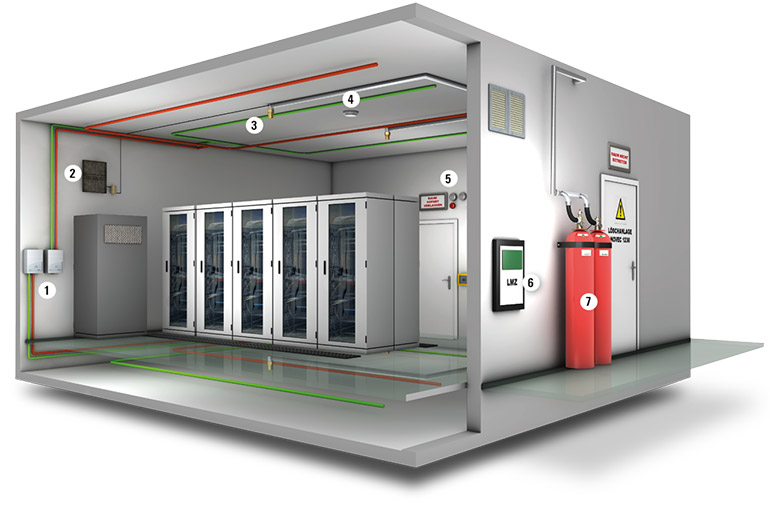

Clean Agent System

Why Go with a Clean Agent Fire Suppression System?

The obvious answer is that a clean agent fire suppression system quickly extinguishes the fire without harming the equipment, employees, and the environment. It leaves no residues to clean up which minimizes the disruption to your business operations. Downtime is a substantial cost to a business and can lead to lost revenue, dissatisfied customers, and damage to your brand reputation.

Gaseous fire suppression, also called clean agent fire suppression, is a term to describe the use of inert gases and chemical agents to extinguish a fire. These agents are governed by the National Fire Protection Association (NFPA) Standard for Clean Agent Fire Extinguishing Systems – NFPA 2001 in the US, with different standards and regulations elsewhere. The system typically consists of the agent, agent storage containers, agent release valves, fire detectors, fire detection system (wiring control panel, actuation signalling), agent delivery piping, and agent dispersion nozzles.

Clean Agent System
Total Flooding System

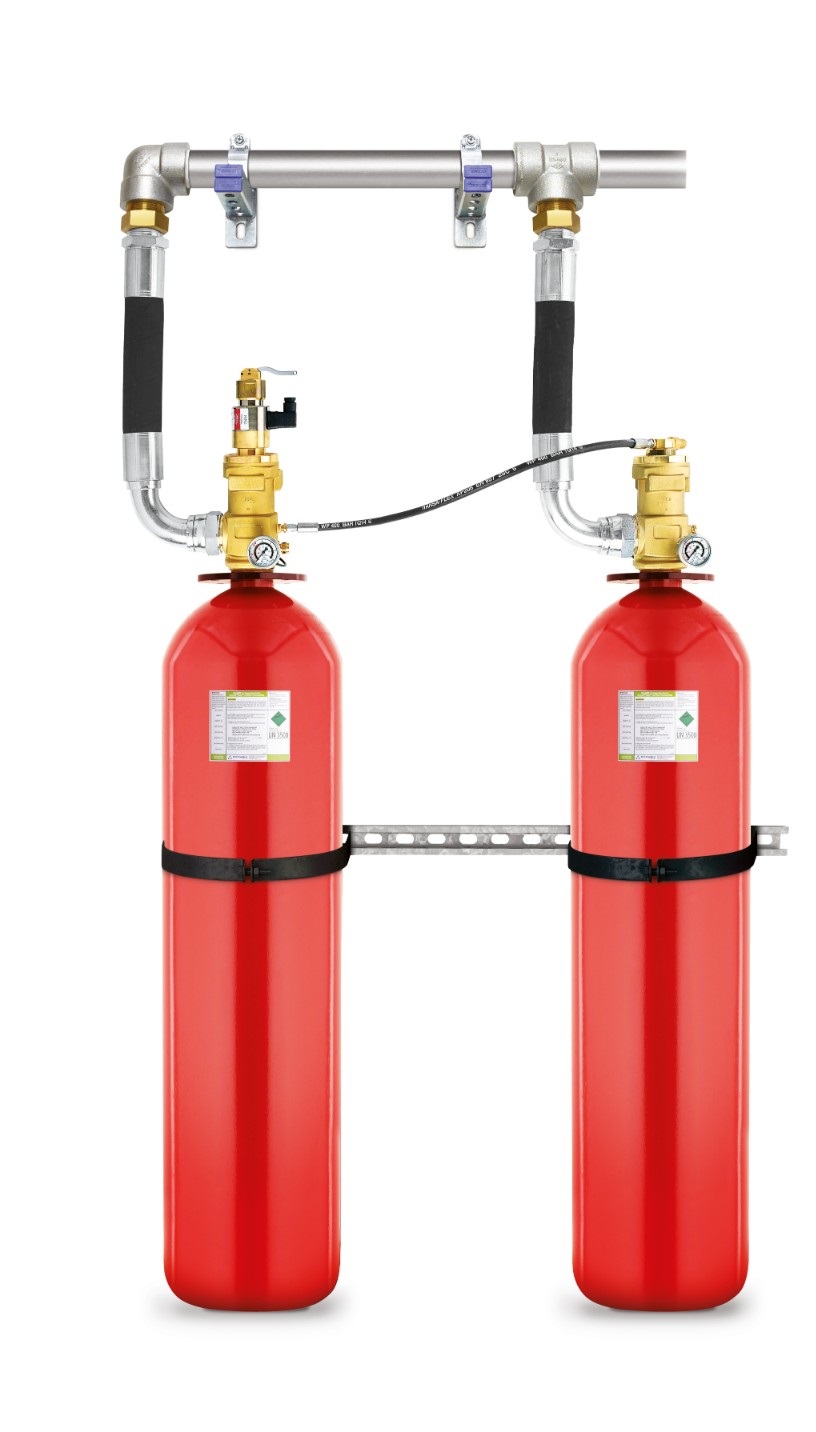

a. Total Flooding System

The systems extinguish fires without leaving residue, while offering a high level of personal and environmental protection at the same time. They are particularly suitable for the protection of small and medium-sized rooms, and the extinguishing agent can be stored compactly, either inside the room or in another area.

HFC 227ea Fire Suppression Systems

HFC 227ea System, also commonly known as FM-200 System, is a clean agent fire suppressant for Class A, B, and C fires and meets NFPA Standard 2001 Clean Agent Fire Extinguishing Systems. Clean agents are fast and effective in suppressing fires, are safe in occupied spaces, and do not leave a residue.

FK-5-1-12 Fire Suppression Systems

FK-5-1-12 system, also commonly known as Novec1230 System, is a clean agent fire suppressant for Class A, B, and C fires and meets NFPA Standard 2001 Clean Agent Fire Extinguishing Systems. Clean agents are fast and effective in suppressing fires, are safe in occupied spaces, and do not leave a residue.

b. Panel Flooding System

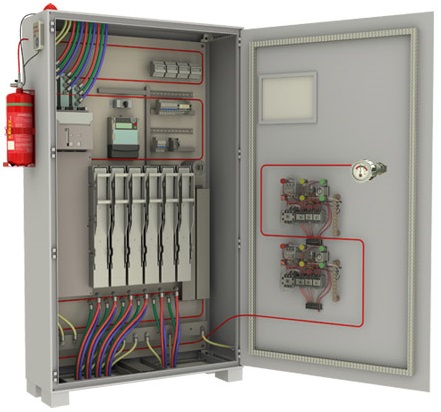

Direct Low Pressure (DLP) System

The fire suppression system operates by detecting fire and applying the agent using a detection tube fastened to a cylinder valve. The detection tube is placed in the protected enclosure under constant pressure. In the case of fire, the detection tube degrades by the effect of fire or high temperature. The agent is released through the created hole when the detection tube is disrupted. The detection system is independent of any electrical supply and operates solely on physical principles.

Total Flooding System
Total Flooding System

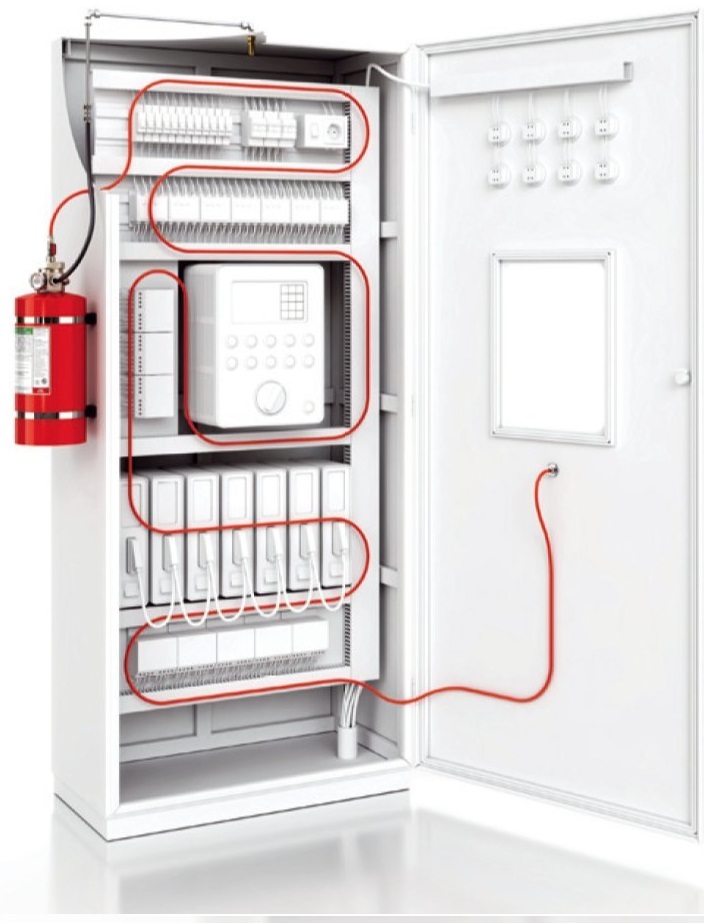

Indirect Low Pressure (ILP) System

The Indirect Low Pressure (ILP) fire suppression system operates by detecting fire/heat by a detection tube that is connected to the valve of a cylinder. The tube is placed in the enclosure to be protected and is under constant pressure, thereby keeping the valve of the cylinder closed. In case of fire, the tube was ruptured by the Fire/Heat. As a result, the pressure inside the detection tube decreases, and that enables the valve piston of the cylinder to open. The Indirect Fire Suppression System activates, and the complete extinguishing agent is released through the nozzles. The detection system is independent of any electrical supply and operates on pneumatic principles. The indirect system is suitable for larger environments or where the specific application of the agent is required. This system also enables various modifications by adding optional components such as manual actuation, detectors, control panels for enhanced operation and control of the system

Inert Gas System

We now have a new fie extinguishing agent, INERGEN, which basically operates like CO2, to dilute the oxygen concentration, is the third mechanism. Unlike CO2, INERGEN results in a breathable atmosphere. Since INERGEN does not contain any halogen component, such as chlorine, fluorine, bromine, iodine, it has no ozone depletion potential like the existing halons and some of the announced replacements. Because of its composition, INERGEN cannot be considered a chemical toxin like the existing halons and the announced replacements. It is not a mutagen, a teratogen, or a carcinogen. It does not have an effect on the central nervous system nor does it sensitize the heart as do the existing halons and some of the replacements.

Inert Gas System

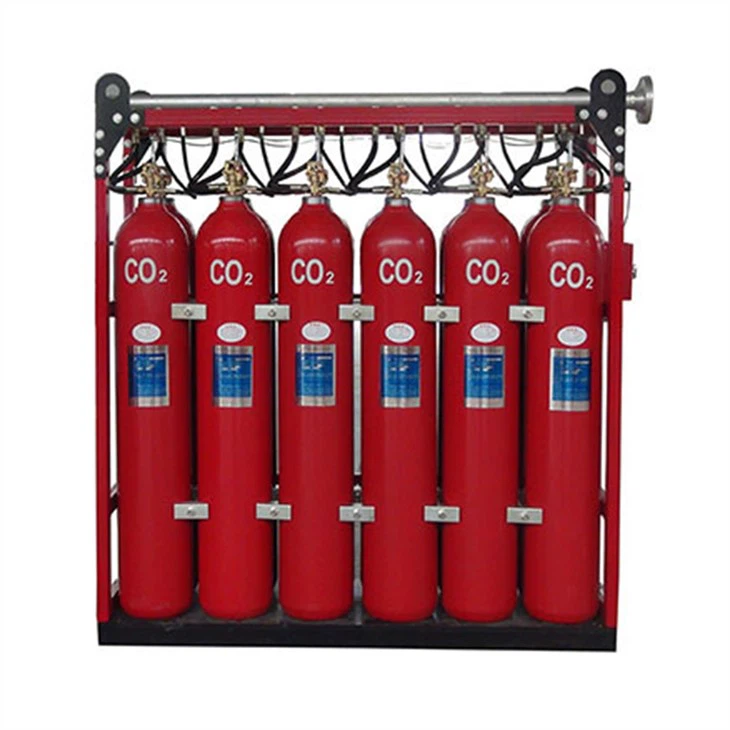

CO2 System

CO2 System

Carbon dioxide fire extinguishing systems is an excellent and are useful in protecting against fire hazards when an inert, electrically nonconductive, three-dimensional gas is essential or desirable and where clean up from the agent must be minimal. It has been used in the fire protection industry for many years and is listed under NFPA-12. According to the NFPA, some of the types of hazards and equipment that carbon dioxide systems protect are "flammable liquid materials; electrical hazards, such as transformers, switches, circuit breakers, rotating equipment, and electronic equipment, engines utilizing gasoline and other flammable liquid fuels; ordinary combustibles such as paper, wood, and textiles; and hazardous solids" (NFPA 12).

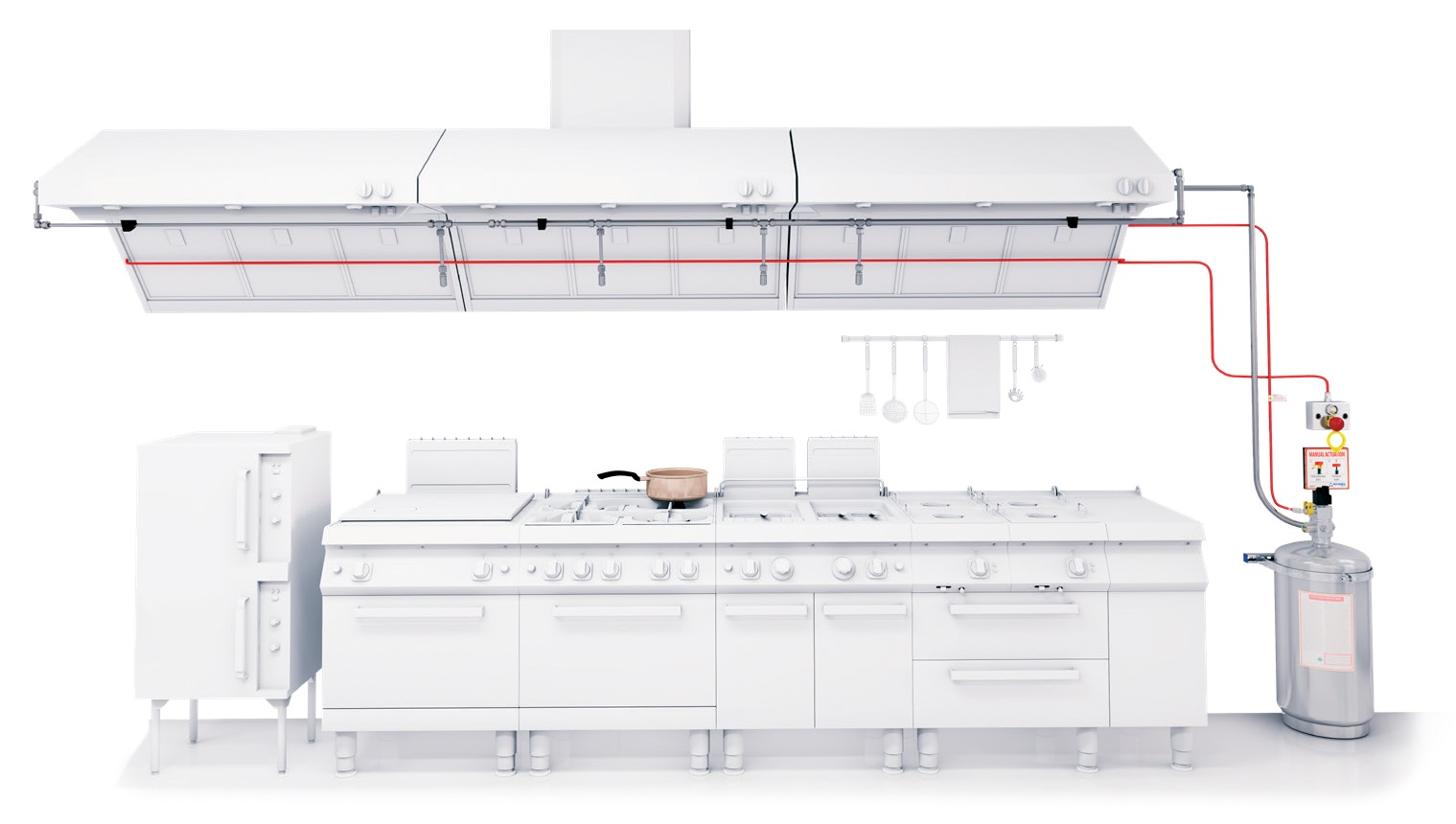

Kitchen Hood System

Kitchen fire suppression systems are highly effective systems to suppress kitchen fires. Once a fire is detected, the system’s nozzles discharge wet chemicals from above the appliance. The wet chemicals cover the flames and suppress the fire. Once the system is activated, it disconnects the fuel line to the kitchen. The hood automatically turns on to remove the smoke caused by the fire. The rest of the kitchen remains unaffected with minimal damage caused to the cooking area.

Kitchen Hood System
Multi Sensor

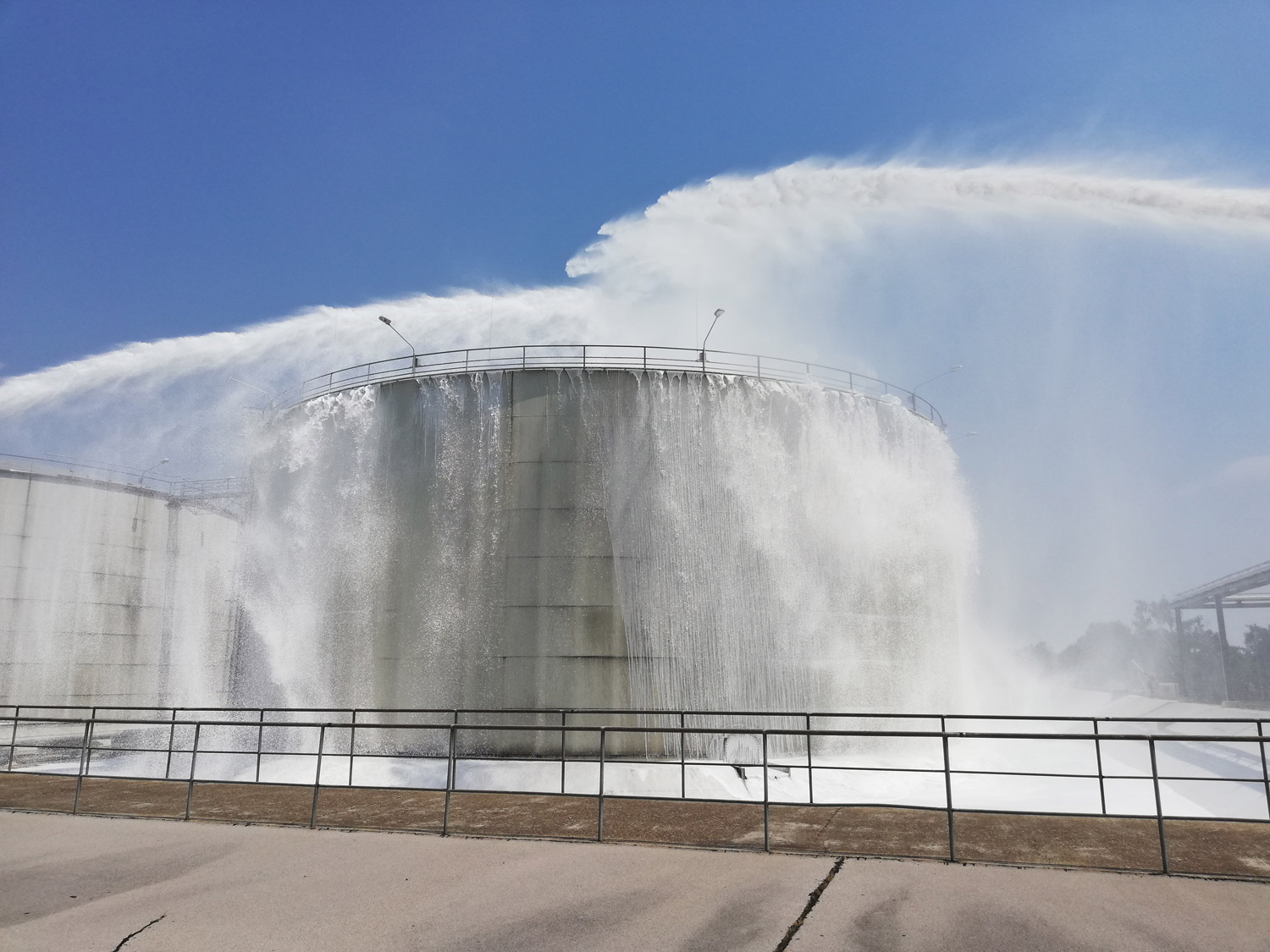

Firefighting foam is a foam used for fire suppression. Its role is to cool the fire and coat the fuel, preventing its contact with oxygen, and resulting in suppression of the combustion. The surfactants used must produce foam in a concentration of less than 1%. Other components of fire-retardant foams are organic solvents (e.g., Triethylene glycol and hexylene glycol), foam stabilizers (e.g., lauryl alcohol), and corrosion inhibitors

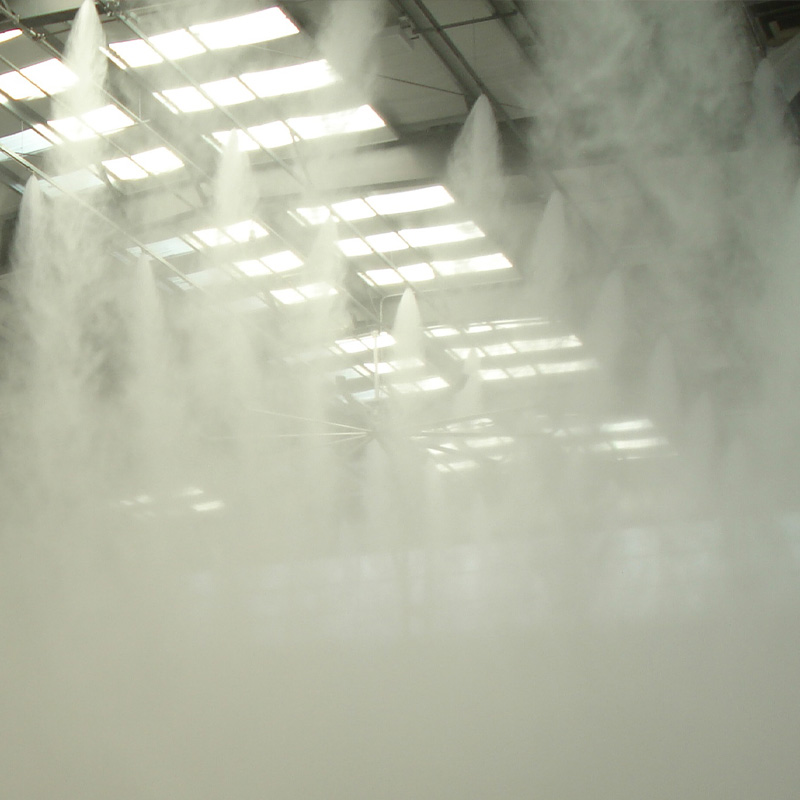

Water Mist System

A water mist system is a fixed fire protection system, comprising components for automatic detection and actuation, water supply delivery, and water atomization. A water mist system discharges a spray of small water droplets. Water mist systems have been demonstrated to be suitable and effective for the protection of spaces on board ships and are an emerging technology for life safety building applications on land. They have successfully been applied to protect assets, e.g. electronic equipment, machinery spaces and deep fat fryers in buildings and now are being increasingly considered for a range of building applications, e.g. for residential premises.
